Hinge Base Assemblies

Reliable. Rugged. Built for Production.

Delivered within days not weeks

Landscape of Welding Tool at Work Making Sparks at Quality Tools Services

Building your own fixtures but struggling to find components that perform reliably — and arrive in days, not weeks or months?

Yeah us too – so we decided to solve the problem

Introducing the QTS Hinge Base Assembly,
a dependable solution for high-volume production jigs.

Start the conversation

Key Features

Designed for repeatability, ease of use, and fast changeovers.

Illustration of Welding Machine Representing We Know What We're Doing at Quality Tools Service

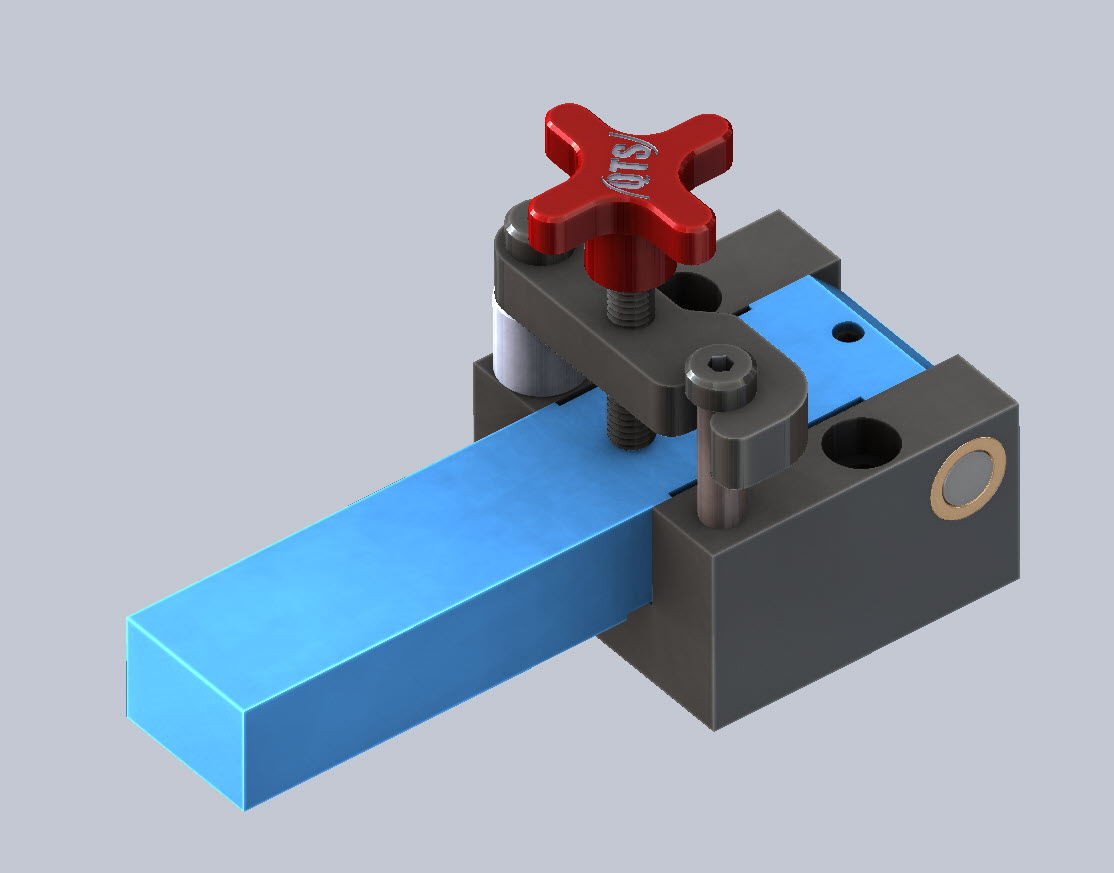

Precision Swing Arm

Precision machined arm that locates accurately and opens easily for part access.

Illustration of Welding Machine Representing We Know What We're Doing at Quality Tools Service

Durable Mounting Base

Precision machined for consistent alignment and stable operation. The base includes liner bushings and setscrew for the hardened hinge pin.

Illustration of Chat Bubbles Representing We Do What We Say at Quality Tools Service

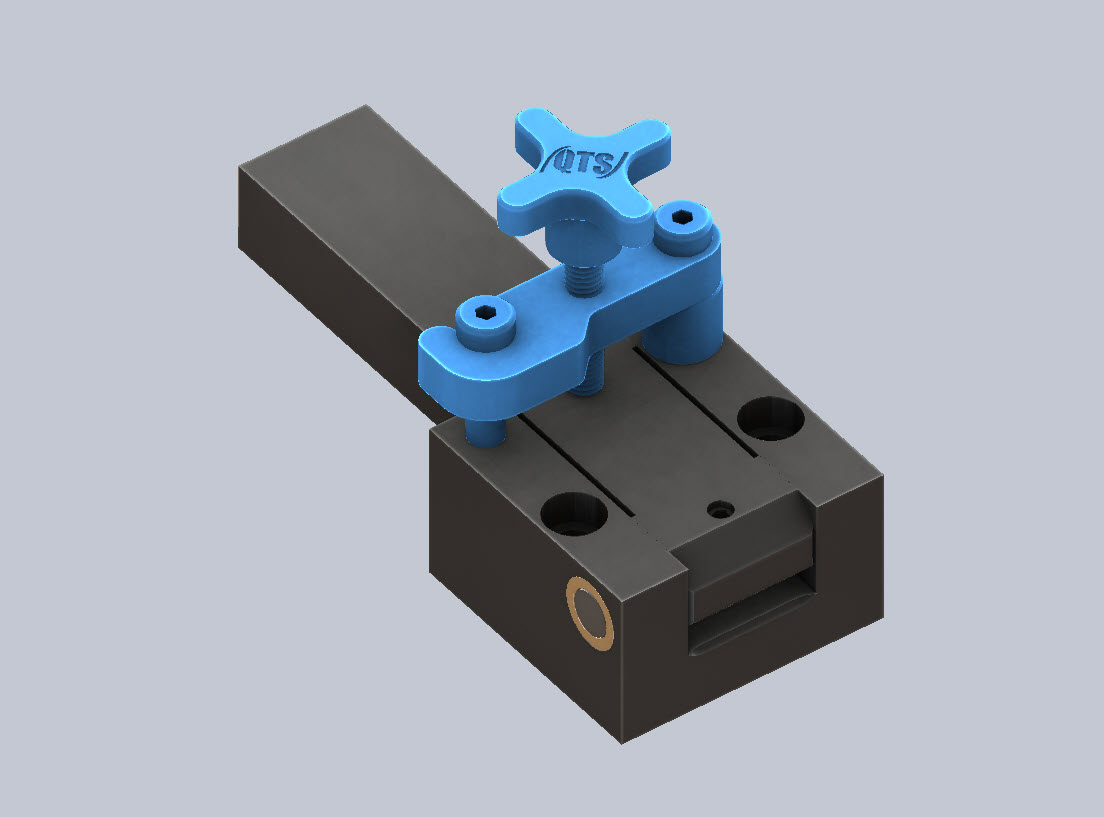

Optional Swing Gate Assembly

Twist knob design holds the Swing Arm firmly closed during use for safety and precision.

Start the Conversation

Available in two sizes to suit your jig requirements.

Proudly made in the USA.

Need something custom?

We offer “blank” versions of the Mounting Base, as well as custom-machined hole patterns and arm configurations upon request. Contact us for a quote tailored to your application.

Start the Conversation

Replacement arms and components

Replacement arms and components are available individually for easy maintenance or retooling. A setscrew allows quick removal of the hinge pin for fast arm swaps with minimal downtime.
